PLoP Boot Manager : Boot PC Notebook Tua Via CDROM atau USB Meski BIOS Tak Mendukung

Kemarin alif tanpa sengaja menemukan boot manager yang bisa membantu kita mem-boot pc atau laptop dari usb flasdisk meski BIOS tak mendukungnya. Begitu juga bila anda masih menyimpan PC tua yang belum bisa boot dari cdrom atau usb flaskdisk, maka PLoP bisa membuat hati anda tak mendua.

Caranya sangat mudah, tinggal bakar iso nya atau atur boot dari boot.ini nya windows XP ke atas. Baca saja keterangan lebih lanjut di bawah. Download saja lalu pelajari dan gunakan ia apa perlunya.

Isi Downloadan :
readme.txt - instructions english
liesmich.txt - instructions german
licence.txt - licence informations
plpbt.bin - boot manager binary
plpbt.img - boot manager floppy disk image
plpbt.iso - boot manager cd iso (floppy emulation mode)
plpbtnoemul.iso - boot manager cd iso (no emulation mode)
install/plpbtin.img - install floppy disk image
install/plpbtin.iso - install cd iso (floppy emulation mode)
install/plpbtinnoemul.iso - install cd iso (no emulation mode)
install/plpinst.com - install program with backup function
install/plpinstc.com - install program without backup function
cfg/plpcfgbt - linux config program for boot manager binary
cfg/plpcfgbt.exe - windows config program for boot manager binary
rom/plpbtrom.bin - rom boot manager binary
rom/plpbtrom - rom create program for linux
rom/plpbtrom.exe - rom create program for windows

ISO - Floppy emulation mode vs No emulation mode
the "No emulation mode" ISO should work everywhere because its like a
Windows install CD.

Here the Readme.txt :

[plop_pagetop.gif] URL: [1]http://www.plop.at/en/bootmanager.html

PLoP Boot Manager v5.0

page update: 21/Apr/2010

[2]1. Introduction
[3]2. Features
[4]3. Screenshots
[5]4. Download
[6]5. Licence
[7]6. Harddisk installation
[8]7. Running without harddisk installation from Floppy, CD, Windows
boot menu, Syslinux, LILO, GRUB, network
[9]8. The Boot Manager
[10]9. Configure the Boot Manager binary plpbt.bin with plpcfgbt
[11]10. Create an ISA/PCI boot manager option ROM
[12]11. Disable the USB driver under DOS
[13]12. Hidden partition / Cleared partition
[14]13. USB info
[15]14. Video dual boot install Windows XP and Windows XP
[16]15. Windows XP and Windows Vista dual boot with hidden (cleared)
partitions
[17]16. Dualboot Windows XP and Windows 7
[18]17. Using the Boot Manager as USB harddisk driver for DOS
[19]18. NOD32 Virus report
[20]19. FAQ's - Frequently asked questions
[21]20. Test team

1. Introduction
__________________________________________________________________

The PLoP Boot Manager is a small program to boot different operating
systems. You can boot the operating systems from harddisk, floppy,
CD/DVD or from USB. You can start the boot manager from floppy, CD,
network and there are many more ways to start the boot manager. You can
install the boot manager on your harddisk. There is no extra partition
required for the boot manager.
The PLoP Boot Manager was written by Elmar Hanlhofer. If you need help,
post it to the [22]forum or send me a message with the [23]contact
form.

The current version is [24]plpbt-5.0.10.zip.

2. Features
__________________________________________________________________

* CD/DVD boot without BIOS support
* USB boot without BIOS support (UHCI, OHCI and EHCI)
* Floppy boot
* Different profiles for operating systems
* Define up to 16 partitions
* No extra partition for the boot manager
* Hidden boot, maybe you have a rescue system installed and the user
should not see that there is another system installed
* Boot countdown
* Hide partitions
* Password protection for the computer and the boot manager setup
* Backup of partition table data
* Textmode user interface 80x50
* Graphic user interface 640x480, 800x600, 1024x786, 1280x1024
* MBR partition table edit
* Start of the boot manager from harddisk, floppy, USB, CD, DVD
* Starting from Windows boot menu
* Starting from LILO, GRUB, Syslinux, Isolinux, Pxelinux (network)
* It can be used as ISA/PCI option ROM
* The boot manager is freeware

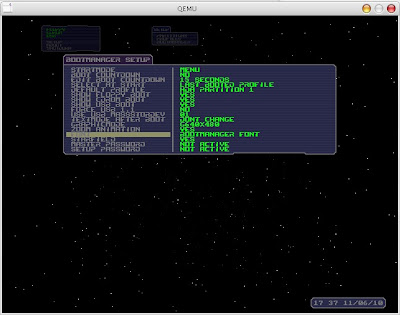

3. Screenshots
__________________________________________________________________

Main menu
[25]mainmenu
zoom

Main menu (textmode)
[26]mainmenu
zoom

Profile partitions
[27]mainmenu
zoom

MBR partition edit
[28]mainmenu
zoom

4. Download
__________________________________________________________________

You can download all files [29]here.

5. Licence
__________________________________________________________________

The PLoP Boot Manager is freeware.
* The Program is free to use for personal and commercial use.
* The Program may not be sold.
* The origin of this software must not be misrepresented; you must
not claim that you wrote the original software. If you use this
software in a product, an acknowledgment in the product
documentation would be appreciated but is not required.

This software is provided 'as-is', without any express or implied
warranty. In no event will the authors be held liable for any damages
arising from the use of this software.

6. Harddisk installation
__________________________________________________________________

There are many ways to install the boot manager to the harddisk. If you
want run the boot manager without harddisk installation then see
[30]Running from Windows boot menu, LILO, GRUB, Syslinux, Floppy, CD.

Warning Linux users: Install LILO or GRUB to the boot sector of your
Linux instead of the Master Boot Record (MBR). The PLoP Boot Manager is
not a Linux loader and cannot start Linux without LILO, GRUB, Syslinux
and similar!
[31]The install program
[32]Install program menu
[33]Harddisk install using Floppy with a disk image
[34]Harddisk install using CD with an ISO file
[35]Harddisk install using DOS
[36]Harddisk install using Windows boot menu (2K, XP and VISTA)
[37]Harddisk install using Syslinux, Isolinux, Pxelinux (Network)
[38]Harddisk install using LILO
[39]Harddisk install using GRUB

The install program
__________________________________________________________________

There are 2 versions of the install program. Basically both versions do
the same. The only difference is that plpinst.com creates a backup file
plpback.bin to restore harddisk sectors for a complete boot manager
uninstall. The second version plpinstc.com skips the backup part. You
have to use the second version for installation from write protected
media like CD's or if you install from network or any other boot
manager.

The install programs are installing the boot manager always on the
first harddisk of your computer.

Install program menu
__________________________________________________________________

1. Full boot manager install

With this option you install the boot manager to your harddisk. If
you have an installed operating system, then the install program
creates a profile for you to boot this operating system.

With the installation from floppy, the install program makes a
backup of the sectors where the boot manager will be installed. The
install program writes the backup to the floppy disk. With this
backup it's possible to remove the boot manager completely from your
harddisk. If you use the CD installation, then it's not possible to
restore the sectors. In this case the uninstall routine creates a
new MBR to boot the current operating system. The partition table
data won't be changed.

2. Write mbr loader only

A small program (the loader) is required in the MBR to start the
boot manager. Operating systems like Windows XP are writing during
the installation their own small program into the MBR. If you
install Windows XP after the boot manager, then Windows XP will
start instead of the boot manager, because the loader is overwritten
with the program from Windows XP. To setup that the boot manager
starts before Windows XP you have to use Write mbr loader only.

3. Boot Manager update

With this, you can update the boot manager. But only updates with
boot manager v5 are working.

4. Complete uninstall

Warning, this option is only available with the installation from
floppy.

The install program takes the backup that was saved on the floppy
disk and writes it back to the harddisk.

Warning, if you changed anything with the partition table, then do
not use this option!

5. Short uninstall

With this option, the program writes a new MBR to start the current
operating system. The partition table will be unchanged.

6. Set Boot Manager screen to textmode

Configures the Boot Manager to start in textmode.

7. Change destination harddisk

Set destination harddisk to install the boot manager.

8. Boot Manager hotkeys

See [40]Hotkeys.

9. Reboot

The computer will be restarted.

Harddisk install using Floppy with a disk image
__________________________________________________________________

A floppy disk image is a file that contains every sector of the floppy
disk. You cannot copy the image file on a floppy disk like a common
file. It's required to use a special program that writes sector per
sector of the image file to the floppy disk sectors. There are many
programs available to do this.

Download the current boot manager [41]plpbt-5.0.10.zip. Extract it to
get the floppy disk image. You find the disk image in the install
directory. The name of the file is plpbtin.img

DOS: You can use [42]diskimg.com with diskimg -d a -w plpbtin.img

Windows: Write the disk image with the program [43]rawwritewin to the
floppy disk

Linux: dd if=plpbtin.img of=/dev/fd0

Harddisk install using CD with an ISO file
__________________________________________________________________

Download the current boot manager [44]plpbt-5.0.10.zip. Extract it to
get the iso file. You find the iso file in the install directory. The
name of the file is plpbtin.iso

Notice: The CD installer makes no backup for a complete uninstall. See
[45]The install program.

Windows:

You can use [46]Nero, or the free program [47]CDBurnerXP, or any
other program that can burn ISO images.

Use the option like burn ISO on CD or burn ISO Image. Then choose
the boot manager ISO and burn it.

Linux:

[48]cdrecord is the linux program to burn ISO images to a CD.

Burn the ISO with cdrecord: cdrecord -v dev=

Example:
If you access your CD burner with /dev/hdd
cdrecord -v dev=/dev/hdd plpbtin.iso

Harddisk install using DOS
__________________________________________________________________

Download the current boot manager [49]plpbt-5.0.10.zip. Extract it to
get the install program. In the install directory there are 2 install
programs (plpinst.com and plpinstc.com) for using under DOS.

plpinst.com creates a backup file plpback.bin for a complete boot
manager uninstall. plpinstc.bin makes no backup. Use plpinstc.com for
write protected media like CD's.

Harddisk install using the Windows boot menu (2K, XP and VISTA)
__________________________________________________________________

Download the file [50]plpgenbtldr-0.7.zip and extract it.
* Create a directory like c:\plop. You can use any directory you
want.
* Copy plpinstc.com and plpgenbtldr.exe to your c:\plop directory.
* Rename plpinstc.com to plpbt.bin.
* As administrator/with administrator rights open a command shell and
change to c:\plop
* Then start plpgenbtldr
This program searches for the file plpbt.bin In the current
directory.
plpgenbtldr generates the file plpbtldr.bin.
* Adding to the boot menu. Windows 2K and XP is different to Windows
VISTA
+ Windows 2K, XP
add the line below to your c:\boot.ini
c:\plop\plpbtldr.bin="Install PLoP Boot Manager"
+ Windows VISTA
open notepad as administrator and create a file c:\boot.ini
add those lines
[boot loader]
[operating systems]
c:\plop\plpbtldr.bin="Install PLoP Boot Manager"

Thanks to tri_zet for this info

Now you should be able to install the PLoP Boot Manager from your
Windows boot menu to your harddisk.

Problems/Errors

plpbt.bin must not be fragmeted! Use [51]contig to take care, that
plpbt.bin is not fragmented.

Harddisk install using Syslinux, Isolinux, Pxelinux (Network)
__________________________________________________________________

Download the current boot manager [52]plpbt-5.0.10.zip. Extract it to
get the boot manager install program. You find the install program
plpinstc in the install directory.

Add plpinstc.com to the config file
* for Syslinux it's syslinux.cfg
* for Isolinux it's isolinux.cfg
* for Extlinux it's extlinux.conf
* for Pxelinux it's pxelinux.cfg/default

Add the following lines to the config file
label plpinst
linux plpinstc.com

Copy plpinstc to the same directory where the config file is.

You start the install program when you enter plpinst at the Syslinux
command prompt.

Harddisk install using LILO
__________________________________________________________________

Download the current boot manager [53]plpbt-5.0.10.zip. Extract it to
get the boot manager install program. You find the install program
plpinstc.com in the install directory.

Copy plpinstc.com to /boot.

Add to your /etc/lilo.conf the following
image=/boot/plpinstc.com
label=plop-install

Run lilo to update lilo.

Harddisk install using GRUB / grub4dos
__________________________________________________________________

Download the current boot manager [54]plpbt-5.0.10.zip. Extract it to
get the boot manager install program. You find the install program
plpinstc.com in the install directory.

Copy plpinstc.com to /boot.

You have to choose the correct root settings in menu.lst for your
system.
The following is an example
title PLoP Boot Manager Install
root (hd0,0)
kernel /boot/plpinstc.com

When you reboot, you should be able to choose the install program from
your grub menu.

7. Running without harddisk installation from Floppy, CD, Windows boot menu,
Syslinux, LILO, GRUB, network
__________________________________________________________________

You can use the PLoP Boot Manager without harddisk installation with
the boot manager binary file plpbt.bin. It's possible to configure the
binary with [55]plpcfgbt.

Warning: If you start the Boot Manager in the following ways, then the
Boot Manager DOES NOT save the changes you made in the
profile/partitions menu! Use this Boot Manager features only when you
installed the Boot Manager with the install program. See [56]Harddisk
installation.
[57]Run from Floppy with a disk image
[58]Run from CD with an ISO file
[59]Run from Windows boot menu (2K, XP and VISTA)
[60]Run from Syslinux, Isolinux, Pxelinux (Network)
[61]Run from LILO
[62]Run from GRUB
[63]Run from GRUB2

Run from Floppy with a disk image

A floppy disk image is a file that contains every sector of the floppy
disk. You cannot copy the image file on a floppy disk like a common
file. It's required to use a special program that writes sector per
sector of the image file to the floppy disk sectors. There are many
programs available to do this.

Download the current boot manager [64]plpbt-5.0.10.zip. Extract it to
get the floppy disk image plpbt.img.

DOS: You can use [65]diskimg.com with diskimg -d a -w plpbt.img

Windows: Write the disk image with the program [66]rawwritewin to the
floppy disk

Linux: dd if=plpbt.img of=/dev/fd0

You can configure the plpbt.bin on the floppy with [67]plpcfgbt.

Run from CD with an ISO file
__________________________________________________________________

Download the current boot manager [68]plpbt-5.0.10.zip. Extract it to
get the iso file plpbt.iso.

Windows:

You can use [69]Nero, or the free program [70]CDBurnerXP, or any
other program that can burn ISO images.

Use the option like burn ISO on CD or burn ISO Image. Then choose
the boot manager ISO and burn it.

Linux:

[71]cdrecord is the linux program to burn ISO images to a CD.

Burn the ISO with cdrecord: cdrecord -v dev=

Example:
If you access your CD burner with /dev/hdd
cdrecord -v dev=/dev/hdd plpbt.iso

Run from the Windows boot menu (2K, XP and VISTA)
__________________________________________________________________

Download the file [72]plpgenbtldr-0.7.zip and extract it.
* Create a directory like c:\plop. You can use any directory you
want.
* Copy plpbt.bin and plpgenbtldr.exe to your c:\plop directory.
* As administrator/with administrator rights open a command shell and
change to c:\plop
* Then start plpgenbtldr
This program searches for the file plpbt.bin in the currrent
directory.
plpgenbtldr generates the file plpbtldr.bin.
* Adding to the boot menu. Windows 2K and XP is different to Windows
VISTA
+ Windows 2K, XP
add the line below to your c:\boot.ini
c:\plop\plpbtldr.bin="PLoP Boot Manager"
+ Windows VISTA
open notepad as administrator and create a file c:\boot.ini
add those lines
[boot loader]
[operating systems]
c:\plop\plpbtldr.bin="PLoP Boot Manager"

Thanks to tri_zet for this info

Now you should be able to start the PLoP Boot Manager from your Windows
boot menu.

You can configure the file plpbt.bin with [73]plpcfgbt.

Problems/Errors

plpbt.bin must not be fragmeted! Use [74]contig to take care, that
plpbt.bin is not fragmented.

Run from Syslinux, Isolinux, Pxelinux (Network)
__________________________________________________________________

Download the current boot manager [75]plpbt-5.0.10.zip. Extract it to
get the boot manager binary program plpbt.bin.

Add plpbt to the config file
* for Syslinux it's syslinux.cfg
* for Isolinux it's isolinux.cfg
* for Extlinux it's extlinux.conf
* for Pxelinux it's pxelinux.cfg/default

Add the following lines to your config file
label plp
linux plpbt.bin

Copy plpbt.bin to the same directory where the config file is.

You start the boot manager when you enter plp at the Syslinux command
prompt.

You can configure the file plpbt.bin with [76]plpcfgbt.

Run from LILO
__________________________________________________________________

Download the current boot manager [77]plpbt-5.0.10.zip. Extract it to
get the boot manager binary program plpbt.bin.

Copy the plpbt.bin file to /boot.

Add to your /etc/lilo.conf the following
image=/boot/plpbt.bin
label=PLoP

Run lilo to update lilo.

You can configure the file plpbt.bin with [78]plpcfgbt.

Run from GRUB / grub4dos
__________________________________________________________________

Download the current boot manager [79]plpbt-5.0.10.zip. Extract it to
get the boot manager binary program plpbt.bin.

Copy the plpbt.bin file to /boot.

You have to choose the correct root settings in menu.lst for your
system.
The following is an example
title PLoP Boot Manager
root (hd0,0)
kernel /boot/plpbt.bin

Run from GRUB2
__________________________________________________________________

Download the current boot manager [80]plpbt-5.0.10.zip. Extract it to
get the boot manager binary program plpbt.bin.

Copy the plpbt.bin file to /boot.

You have to choose the correct root settings in grub.cfg for your
system.
The following is an example
menuentry "PLoP Boot Manager" {
set root=(hd0,0)
linux16 /boot/plpbt.bin
}

When you reboot, you should be able to start the boot manager from your
grub menu.

You can configure the file plpbt.bin with [81]plpcfgbt.

8. The Boot Manager
__________________________________________________________________

1. Hotkeys - Global keys

Cursor up/down Move the bar
Enter Choose selection
ESC Close window
CTRL - ESC Switch to textmode
CTRL - PAGE UP Switch to higher screen resolution
CTRL - PAGE DOWN Switch to lower screen resolution
z Enable/Disable window zoom animation

2. Main menu

In the main menu you see all visible profiles to boot an operating
system. You can start an operating system from floppy, cd/dvd or
usb. You can go to the setup of the boot manager, partitions and
profiles. If your bios supports APM, you can shutdown your computer.

Special additional keys for USB boot:
* press SHIFT to force USB 1.1
* press CTRL to wait for a keypress before starting the operating
system. You have here the option to press "n" (next) and continue
the search for mass storage devices to boot from another usb
device.

2.1. Main menu hotkeys

1-9 Boot profile
q Quick boot, open a list of all possible hardcoded partitions to
boot
w Write MBR with the profile settings, but do not boot
f Boot floppy
c Boot CD/DVD
u Boot USB
press SHIFT to force USB 1.1
press CTRL to wait for a keypress before starting the operating
system. You have here the option to press "n" (next) and continue the
search for mass storage devices to boot from another usb device

3. Setup

3.1. Partitions

You can manage your partitions here. The install program creates an
entry for all primary partitions it finds. The names are from HDA1
up to HDD4. HD means harddisk. HDA stands for harddisk A and is the
first harddisk. The numbers 1-4 are the numbers of the primary
partitions.

Notice for linux users: HDA has nothing to do with the devices in
linux like /dev/hda.

Edit label

You can change the label for the partition. This label is used in
the boot manager. The maximum length is 16 chars.

Select Device

Here, you choose the harddisk of the partition.

HDA = Harddisk 1
HDB = Harddisk 2
HDC = Harddisk 3
HDD = Harddisk 4

Partition ID

There are 2 ways to set the ID of a partition.

1. Enter partition ID

You can enter the hexadecimal value for the partition.

2. Select ID from list

This list has the mostly used partition ID's. If the requested ID is
not in the list, then use Enter partition ID.

View/Edit/Copy data

This is used to change the values of partitions in the MBR.

BP means boot manager partition. This values are stored in the boot
manager.

P1-P4 this are the current values of the primary partitions in the
MBR.

You can edit the hexadecimal values in the partition table. You can
select a row with s (select) and paste the values to the row where
the cursor is with p. With this function, you can import partition
values to the boot manager or change values in the MBR. This can be
very useful in emergency cases.

Clear partition data

Clearing the data means clearing of the partition data in the boot
manager. The data on the partition itself is unchanged.

Reset changes

Use it if you changed something and you want to restore the whole
values of the partition in the boot manager. This is possible until
you close the partition edit window.

3.2. Profiles

Profiles are used to start different operating systems from
different harddisks and partitions. It's also possible to detect
changes in the MBR made by other software and import or forget the
changes.

If you have an operating system installed and you install the boot
manager, the installer creates a profile to boot the current
operating system.

Edit label

You can edit the label of the profile. This label is shown in the
main menu. It's useful to use a label to see what operating system
is going to boot. The maximum length is 16 chars.

Show in main menu

With this option you select if the profile is shown in the main menu
or not. Only visible profiles can be booted. It also has effects on
the default profile in the boot manager setup.

Linked partitions

You select from which harddisk, partition and bios device number you
want to boot with this profile. You can also select what partitions
or cleared partitions should be used for the MBR.

Configure partition entries

There are 3 states for a partition entry

1. a selected partition

Press enter to choose a partition from a list with all partition of
this harddisk available from Partitions.

If another software change this entry in the MBR, the boot manager
detects this change at the next startup. You can choose if you want
to import the new values or forget them.

2. don't touch

The partition entry in the MBR will not be changed from the boot
manager. That is the default setting.

If a software changes this entry in the MBR the boot manager cannot
detect this change.

3. cleared

The boot manager set's this entry to 0 in the MBR. An operating
system cannot detect that there is/was a partition.

WARNING: if the boot manager has not stored the values of the
partition in "Partitions" then you lose the partition values in the
MBR and you cannot access the data on the partition. It's possible
to restore those values, but it's better, easier and safe to store
the values in Partitions.

Partition programs will say this is unallocated space! Do not
partition this space! You can lose data if you do it wrong.

Linked partitions - hotkeys

b set boot partition. You select, what partition you want to boot
with this profile. The boot manager set a bios drive number
automatically. It's possible to change it with another key.

c clear partition. You set this entry to "cleared" and the boot
manager cleares this entry in the MBR when you boot this profile.

d don't touch. You set the entry to don't touch and the boot manager
does not change this entry when you boot this profile.

e edit boot flag. The boot flag has the bios drive number used by
the boot sector routine. In some cases it's required to change this
value.

r remove boot flag. Here, you remove the boot flag from the profile.

l set logial partition. You can set to boot from a logical partition
1-4 of an extended partition. Change the logical number by pressing
"l". L1 = first logical, L2 = second, ...

Clear profile data

You can clear the profile data in the boot manager. The data in
Partitions are not changed.

Reset changes

Use it if you changed something and want to restore the whole values
of the profile in the boot manager. This is possible until you close
the profile edit window.

3.3. Boot manager

Startmode

The boot manager has two modes to start. With the user interface
menu and hidden.

For the hidden mode, you have to set the bootcounter and you have to
select a default profile. The default profile boots after the
countdown. The user can not see that there is a boot manager in the
background. If you want to go into the boot manager, then press ESC.

Boot countdown

You can enable and disable the countdown.

If the bootcounter is enabled, the boot manager waits the given time
and starts after the countdown the last used profile or the default
profile, depending on your settings.

Edit boot countdown

Choose between 1 and 99 seconds.

Select at start

At start, the boot manager set the bar to the selected option. This
works for the hidden start mode too.

You have the following options

1. Last booted profile

2. Default profile

3. Floppy

4. CDROM

5. USB

Default profile

You can select the default profile from a list of all visible
profiles.

Show floppy boot

Show the floppy boot option in the main menu.

Show cdrom boot

Show the cdrom boot option in the main menu.

Show usb boot

Show the USB boot option in the main menu.

Force USB 1.1

Use USB 1.1 controller even if there is a USB 2.0 controller.

Mode 1: Ignore the EHCI Controller
Mode 2: Setup EHCI Controller and set all ports to the companion
host. Some controllers need this option to force usb 1.1.

Use Mass Stor Dev

Use Mass Storage Device. Boot the X mass storage device that was
found. Other devices are ignored.

Textmode after boot

You can select the textmode during the startup of an operating
system. Choose between "don't change" or 80x50.

Graphicmode

Select the screen resolution in the boot manager. Choose between
textmode 80x50 and graphicmode 640x480, 800x600, 1024x768,
1280x1024.

Zoom animation

Enable and disable the window animation.

Font

Select the boot manager font or the bios font.

Starfield

Enable and disable the starfield animation.

Masterpassword

Setup the master password. Disable the boot manager password
protection with an empty password.

Setuppassword

Setup the setup password. Disable the boot manager setup password
protection with an empty password.

9. Configure the Boot Manager binary plpbt.bin with plpcfgbt
__________________________________________________________________

[82]plpcfgbt-0.7.zip is a tool to configure the binary version
plpbt.bin of the boot manager. This program is available for Windows
and Linux. You start the program from a command shell. If you run the
program without parameters then you will see the help information.
Usage: plpcfgbt [OPTIONS] file

Options:
========
PARAM SET VALUES
vm video mode text, 640x480, 800x600, 1024x768, 1280x1024
stm start mode menu or hidden, hidden requires cnt=on and dbt not off
cnt countdown on or off
cntval countdown value in seconds between 1 and 99
dbt default boot off, profile, floppy, cdrom, usb
prf profile value between 1 and 16
stf starfield on or off
zan zoom animation on or off
fnt font bt or bios
usb1 force usb 1.1 on or off
int19h int19h/os boot do not boot the os and use int19h, on or off
hotkey startup hotkey yes or no

Infos about int19h see [83]here.
The hotkey option is useful with CD's or ROM's. You get the info to
press CTRL-A to start the boot manager. If you don't press it, the the
booting continues without the boot manager.

Examples

* Print current settings
plpcfgbt plpbt.bin
* Configure hidden boot and boot the usb device
plpcfgbt stm=hidden cnt=on cntval=1 dbt=usb plpbt.bin

10. Create an ISA/PCI boot manager option ROM
__________________________________________________________________

You can create an option ROM file with [84]plpbtrom-0.3.zip.
Usage: plpbtrom [OPTIONS] input-file output-file

Options:
========

-h this help
-pci create PCI ROM (default)
-isa create ISA ROM
-vendorid id hex value of the card vendor (only pci)
-deviceid id hex value of device (only pci)
-grabid grab vendor/device id from PCI ROM file

input-file boot manager file (ex. plpbtrom.bin)
output-file ROM file name


Examples

* plpbtrom plpbtrom.bin plpbt.rom
* plpbtrom -isa plpbtrom.bin plpbt.rom
* plpbtrom -vendorid 0x10ec -deviceid 0x8139 plpbtrom.bin plpbt.rom
* plpbtrom -grabid netcard.rom plpbtrom.bin plpbt.rom

Files

plpbtrom - Linux executable
plpbtrom.exe - Windows executable
plpbtrom.bin - Boot Manager

Difference plpbtrom.bin and plpbt.bin

The only difference is that plpbtrom.bin gives the control of the boot
process back to the bios with a far return if you press esc. plpbt.bin
makes a reboot with int 19h.

You can configure plpbtrom.bin like plpbt.bin with [85]plpcfgbt. You
can enable/disable a hotkey to stat the boot manager.

How to test a ROM

You can test your rom file with the free virtual machine [86]qemu.

qemu -hda harddisk.img -option-rom plpbt.rom

If you have no harddisk image file then take one from the qemu download
page or use a floppy image.

qemu -fda floppy.img -option-rom plpbt.rom

How to flash

Flash at your own risk. See [87]http://www.etherboot.org.

11. Disable the USB driver under DOS
__________________________________________________________________

If you run DOS and the PLoP USB driver is loaded, then you can disable
the USB driver with [88]plpdisd-0.1.zip. When you disable the driver,
then you are able to load other DOS usb drivers.
You can run plpdisd from config.sys
DEVICE=\plpdisd.exe

It's also possible to run it from the autoexec.bat or command line.

12. Hidden partition / Cleared partition
__________________________________________________________________

There is a important difference between "hidden" and "cleared"
partitions.
* Hidden Partition: Operatings systems, backup soulutions and so on
can see them but they ignore them. I would say, this is a pseudo
hidden partition.
* Cleared Partition: No program (except the boot manager) knows that
there is/was a partition defined in the MBR. This is really hidden.
It looks like unallocated space for every program. That means no
other program can access the data on that partition (with some work
and searching the harddisk there are still ways to access the
data). There is a risk, if you repartition the harddisk, you will
overwrite your invisible partition and all data on it if you do it
wrong.

The partition should be visible in one profile and hidden (and not cleared)
in another profile

Lets say you want to have the second partition on HDA (HDA2) on one
profile visible and on another hidden (and not cleared).
* Use an empty entry in partitions. Give it the label "hidden hda2".
* Select the device HDA.
* Go to "VIEW/EDIT/COPY DATA".
* Move the cursor to P2 and press "s". Now move up to "BP" and press
"p".
* Press ESC and go to "Partition ID". Choose "Select from list".
Choose the hidden version of your partition.
* Press ESC and save your changes.
* Go to "profiles".
Now you can assign the "visible" version of your partition to one
profile and the "hidden" to another profile.

12. USB info
__________________________________________________________________

* Only USB mass storage devices are supported. The USB support allows
to boot from usb harddisk, usb sticks and usb cardreaders. USB
floppys and CD/DVD drives are not working.
* There is no USB HUB implementation. It's required to connect your
USB device directly to the USB port of your computer.
* The USB implementation works on many computers. If it does not work
on yours, please contact me. Maybe we can fix it.
Current status see [89]Bootmanager Status.

14. Video dual boot install Windows XP and Windows XP
__________________________________________________________________

Download [90]demoinstall.wmv ([91]demoinstall.zip). The quality is not
the best but you see all required steps. I hope its useful.

15. Windows XP and Windows Vista dual boot with hidden (cleared) partitions
__________________________________________________________________

The goal is to install Windows XP on the first partition and Windows
Vista on the second partition. I want that no windows has access to the
partition of the other Windows. There should be a third partition that
will be used as shared partition. Both Windows have access to this
partition.

There are many ways to do this. I will describe one way.

It works only with the [92]Harddisk installation!

What should be the result

* Windows XP on partition 1
* Windows Vista on partition 2
* A shared partition for both Windows as partition 3
* No Windows has access to the other Windows partition
* Realized with the PLoP Boot Manager (harddisk installation)

Basic conditions

* The harddisk is not partitioned
* No boot manager is installed

The description

Install Windows XP

At first install Windows XP. Create with the Windows installer a
partition with the size you want. I use a 10GB partition. Install
Windows XP on this partition.

Setup Partitions

When you installed your Windows, go to the Disk Management and
create a second primary partition for Vista and a third primary
partition for the shared data.

Install the boot manager

Now comes the boot manager part. Boot from the boot manager install
floppy or CD. Install the boot manager to the harddisk and then
reboot.

Configure the Windows XP profile

The boot manager created a profile called "os harddisk 1" to boot
Windows XP. It also imported the 3 primary partitions. The names are
HDA1, HDA2 and HDA3.

Now go to setup and profiles. Select os harddisk 1. Give it the new
label windows xp.

Select linked partitions. Press enter at the first slot of HDA and
select HDA1. At the second slot press c to set it to cleared. You
can leave the third slot as don't touch or select HDA3. See the
difference at [93]configure partition entries.

Configure the Windows Vista profile

Now leave the configuration of Windows XP and go to an empty profile
in Profiles. Give it the label windows vista. Set show in main menu
to yes. Now select linked partitions. Press at the first slot c to
set it to cleared. At the second slot press b to set the boot flag.
Press enter and select HDA2. On the third slot choose the same as
for windows xp (don't touch or HDA3).

Install Window Vista

Go back to the main menu. Now you see windows xp and windows vista.
Move to windows vista and press Enter. This writes the profile
settings to the harddisk. The booting will fail, because Vista is
not installed. Now boot the Windows Vista install DVD. In the
installer you should see at the partitions screen at first an
unallocated space (there is xp installed) and 2 primary partitions.
Select the first primary partition to install Windows Vista. when
the Windows Vista installation has been finished, it's possible,
that Vista is booting immediately and the PLoP Boot Manager does not
come. In this case use Write mbr loader only from the PLoP Boot
Manager install floppy or CD.

Now you should have two bootable Windows on your harddisk and they
don't know from each other. You can share data between both with the
shared partition.

Windows Vista on the second harddisk

It's similar to the previous description, if you want to install
Windows XP on the first harddisk and Windows Vista on the second
harddisk. The second harddisk is HDB in the boot manager. So install
Windows Vista to the first partition of the second harddisk. Set in the
vista profile/linked partitions the first slot of HDB to HDB1 and press
b. The boot manager will set the boot flag to 81h. This should be ok
for your installation.

17. Dualboot Windows XP and Windows 7
__________________________________________________________________

Here are short instructions for a complete new installation of your pc
with dualbooting WinXP and Win7. It doesn't matter if you use 32 or 64
bit versions. Take care, all data on your pc will be deleted!

Boot the Win7 install DVD. Remove all partitions from the harddisk.
Create a partition for Win7. The install program will create 2
partitions. One with about 80MB for the Win7 boot files and a second
partition with the Win7 files. Create an additional partition for
WinXP. Now you see 3 partitions. Install Win7 to the second partition.
After the Win7 installation is complete, install the PLoP Boot Manager.
After the Boot Manager installation go to the Boot Manager Setup, then
Profiles, then "OS HARDDISK 1". Change the name to "Win7". Go to linked
partitions and press enter on the first position of HDA and select
HDA1, on the second select HDA2 and on the third press "c" for cleared.
Now leave the profile settings for Win7. Use now an empty profile to
create the WinXP profile. Give it the name WinXP, visible in main menu
"yes". In linked parttitions select for HDA on the first position HDA3,
press "b" to set the bootflag on the first position. On the second
press "c" to set it cleared. On the third press "c" to set it to
cleared too. Go to the main menu and press enter on WinXP. You will be
not able to boot this partition because XP is not installed currently.
If you get the message about invalid boot signature, then press "n" to
abort. Now boot the WinXP install CD. You should see now only one
partition. Install WinXP there. After the installation completed then
start the PLoP Boot Manager install CD and use "Install mbr loader
only". Reboot, the boot manager will tell you about partition changes.
Press "y" to import the new values. Now you should be able to boot both
systems.

16. Using the Boot Manager as USB harddisk driver for DOS
__________________________________________________________________

I know this is very special. Maybe it's useful for some people. You
have to configure the plpbt.bin with [94]plpcfgbt to use int19h instead
of booting the operating system.

plpcfgbt int19h=on plpbt.bin

Now you have to start plpbt.bin with a boot manager like grub, syslinux
or what ever during boot time (supported boot managers see [95]here).
Choose USB and the boot manager will install the usb driver and go back
to your boot manager. If you start DOS you will have access to your usb
drive as last harddisk. But remember, the usbdrive is only as "read
only" device available.

If it works for you then use plpcfgbt int19h=on stm=hidden cnt=on
cntval=1 dbt=usb plpbt.bin

To disable the usb driver from DOS see [96]plpdisd.

18. NOD32 Virus report
__________________________________________________________________

This problem was fixed but with the new NOD32 versions it's back. It's
a false report.

19. FAQ's - Frequently asked questions
__________________________________________________________________

1. [97]I booted DOS from USB and I cannot write on the drive
2. [98]Are there plans to add write support in the future
3. [99]The boot manager detect's my usb cdrom, but booting hangs
4. [100]My USB keyboard does not work when I booted from USB
5. [101]Can I use my PCMCIA Card to boot from USB
6. [102]I want to install the boot manager from my USB device, but I
cannot choose my internal harddisk
7. [103]I use plpbt.bin and it forgets my settings
8. [104]I can not boot from my SATA CD/DVD drive


1. I booted DOS from USB and I cannot write on the drive
My drivers have no write routines implemented. You want to know
why? My intention was to have USB drivers for UHCI, OHCI and EHCI
controllers in my tiny boot manager. The space to install the boot
manager without the need of a partition is very limited. So there
was no space left for write routines.
2. Are there plans to add write support in the future
It's in my mind, but there are no fix plans.
3. The boot manager detect's my usb cdrom, but booting hangs
USB CD/DVD drives are not supported.
4. My USB keyboard does not work when I booted from USB
USB keyboards are not supported by my drivers. When you boot Linux
or Windows, then your keyboard will be available when those
operating systems are taking control over the USB hardware.
5. Can I use my PCMCIA Card to boot from USB
No, PCMCIA is not supported.
6. I want to install the boot manager from my USB device, but I cannot
choose my internal harddisk
The problem with installing on the internal (in this case the
second) harddisk with the installer is, that the installer imports
the partitions from the usb device and thinks this are the
partitions of the first harddisk. When the boot manager boot's
later from the real harddisk then the imported partitions are not
correct. You see the problem? Sure it would be possible to add an
option to handle this situation, but there are so many other ways
to install the boot manager, that there are no plans to add this
feature to the installer (except, many people request this
feature).
7. I use plpbt.bin and it forgets my settings
You have to configure plpbt.bin with plpcfgbt. All changes you make
within the boot manager menu are only valid until you reboot. The
changes are not saved.
8. I can not boot from my SATA CD/DVD drive
SATA CD/DVD drives are not supported. Only IDE CD/DVD drives are
working.

20. Test team
__________________________________________________________________

Special thanks goes to
* Florian "Bazong" G.
* Diego Rodriguez
* Rodrigo Cassali
* Giano
* George A. Martinez
* Koen van Beek
* Pete K
* Raymond
* Michael Reichenbach
* Julius Schwartzenberg
* Quinn Plattel

Thanks for you patience and trying again and again a lot of test
programs.

References

1. http://www.plop.at/en/bootmanager.html
2. http://www.plop.at/print/bootmanager_en.html#intro
3. http://www.plop.at/print/bootmanager_en.html#features
4. http://www.plop.at/print/bootmanager_en.html#screenshots
5. http://www.plop.at/print/bootmanager_en.html#download
6. http://www.plop.at/print/bootmanager_en.html#licence
7. http://www.plop.at/print/bootmanager_en.html#installhd
8. http://www.plop.at/print/bootmanager_en.html#noinstall
9. http://www.plop.at/print/bootmanager_en.html#bootmanager
10. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
11. http://www.plop.at/print/bootmanager_en.html#plprom
12. http://www.plop.at/print/bootmanager_en.html#plpdisd
13. http://www.plop.at/print/bootmanager_en.html#hid
14. http://www.plop.at/print/bootmanager_en.html#usbinfo
15. http://www.plop.at/print/bootmanager_en.html#ex0
16. http://www.plop.at/print/bootmanager_en.html#ex1
17. http://www.plop.at/print/bootmanager_en.html#ex3
18. http://www.plop.at/print/bootmanager_en.html#drv
19. http://www.plop.at/print/bootmanager_en.html#nod32
20. http://www.plop.at/print/bootmanager_en.html#faq
21. http://www.plop.at/print/bootmanager_en.html#testteam
22. http://forum.plop.at/
23. http://www.plop.at/en/contact.html
24. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
25. http://www.plop.at/slide16en01.html
26. http://www.plop.at/slide16en02.html
27. http://www.plop.at/slide16en03.html
28. http://www.plop.at/slide16en04.html
29. http://www.plop.at/en/bootmanagerdl.html
30. http://www.plop.at/print/bootmanager_en.html#noinstall
31. http://www.plop.at/print/bootmanager_en.html#installer
32. http://www.plop.at/print/bootmanager_en.html#instop
33. http://www.plop.at/print/bootmanager_en.html#flpinst
34. http://www.plop.at/print/bootmanager_en.html#cdinst
35. http://www.plop.at/print/bootmanager_en.html#dosinst
36. http://www.plop.at/print/bootmanager_en.html#wininst
37. http://www.plop.at/print/bootmanager_en.html#syslinuxinst
38. http://www.plop.at/print/bootmanager_en.html#liloinst
39. http://www.plop.at/print/bootmanager_en.html#grubinst
40. http://www.plop.at/print/bootmanager_en.html#hotkeys
41. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
42. http://download.plop.at/files/DISKIMG.COM
43. http://download.plop.at/files/rawwritewin.exe
44. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
45. http://www.plop.at/print/bootmanager_en.html#installer
46. http://www.nero.com/
47. http://www.cdburnerxp.se/
48. http://cdrecord.berlios.de/old/private/cdrecord.html
49. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
50. http://download.plop.at/files/bootmngr/plpgenbtldr-0.7.zip
51. http://technet.microsoft.com/en-us/sysinternals/bb897428.aspx
52. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
53. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
54. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
55. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
56. http://www.plop.at/print/bootmanager_en.html#installhd
57. http://www.plop.at/print/bootmanager_en.html#runflp
58. http://www.plop.at/print/bootmanager_en.html#runcd
59. http://www.plop.at/print/bootmanager_en.html#runwin
60. http://www.plop.at/print/bootmanager_en.html#runsyslinux
61. http://www.plop.at/print/bootmanager_en.html#runlilo
62. http://www.plop.at/print/bootmanager_en.html#rungrub
63. http://www.plop.at/print/bootmanager_en.html#rungrub2
64. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
65. http://download.plop.at/files/DISKIMG.COM
66. http://download.plop.at/files/rawwritewin.exe
67. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
68. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
69. http://www.nero.com/
70. http://www.cdburnerxp.se/
71. http://cdrecord.berlios.de/old/private/cdrecord.html
72. http://download.plop.at/files/bootmngr/plpgenbtldr-0.7.zip
73. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
74. http://technet.microsoft.com/en-us/sysinternals/bb897428.aspx
75. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
76. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
77. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
78. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
79. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
80. http://download.plop.at/files/bootmngr/plpbt-5.0.10.zip
81. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
82. http://download.plop.at/files/bootmngr/plpcfgbt-0.7.zip
83. http://www.plop.at/print/bootmanager_en.html#drv
84. http://download.plop.at/files/bootmngr/plpbtrom-0.3.zip
85. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
86. http://www.qemu.org/
87. http://www.etherboot.org/
88. http://download.plop.at/files/bootmngr/plpdisd-0.1.zip
89. http://www.plop.at/en/bootmngrusblog.html
90. http://download.plop.at/files/ploplinux/video/demoinstall.wmv
91. http://download.plop.at/files/ploplinux/video/demoinstall.zip
92. http://www.plop.at/print/bootmanager_en.html#installhd
93. http://www.plop.at/print/bootmanager_en.html#partentries
94. http://www.plop.at/print/bootmanager_en.html#plpcfgbt
95. http://www.plop.at/print/bootmanager_en.html#runwin
96. http://www.plop.at/print/bootmanager_en.html#plpdisd
97. http://www.plop.at/print/bootmanager_en.html#faq0
98. http://www.plop.at/print/bootmanager_en.html#faq1
99. http://www.plop.at/print/bootmanager_en.html#faq2
100. http://www.plop.at/print/bootmanager_en.html#faq3
101. http://www.plop.at/print/bootmanager_en.html#faq4
102. http://www.plop.at/print/bootmanager_en.html#faq5
103. http://www.plop.at/print/bootmanager_en.html#faq6
104. http://www.plop.at/print/bootmanager_en.html#faq7
